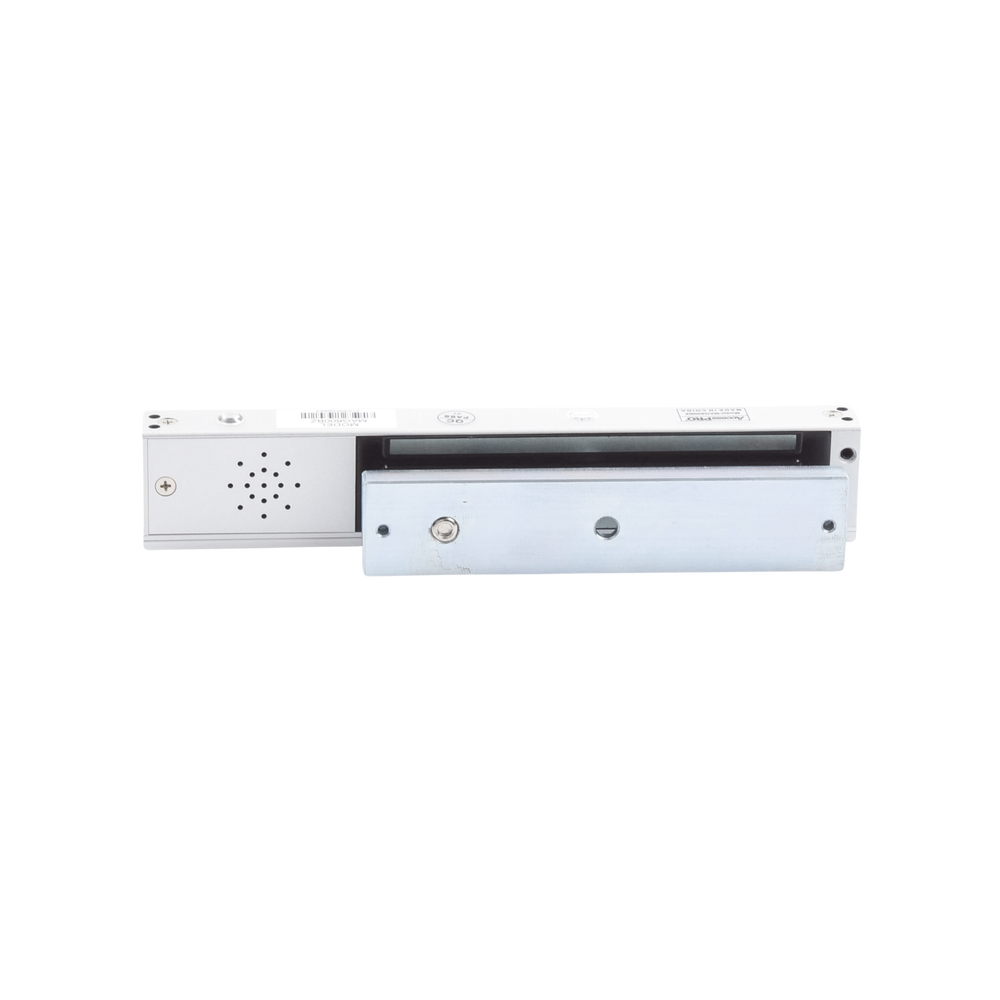

Single Door Magnetic Lock (Buzzer)/ Lock Status sensor / LED Indicates the Door Status.

Descripción

• Clamping foce: 280 kg, (600lbs).
• Buzzer for door open alarm.
• Door open alarm timer 5/10/20/30 seconds.
• Voltage:12/24 Vdc+10% (selectable per jumper).
• Current consumption:12V/480mA, 24V/240mA.
• Door status LED.
• Operating temperature: 10 ~ 55 ºC (14 – 131 ºF).
• Operating temperature: 0 ~ 90 % (non-condensins).
• Magnet finish: anodized aluminum.
• Plate finish: zinc.
• Magnet dimensions: 285 x 55 x 27.5 mm.
• Plate dimensions: 190 x 45 x 11 mm.
• Weight: 2 kg.

NOTE: It does not handle Z and L mounts, it is only possible to install with an I mount (included) as shown in the image.
