Descripción
- Single channel sensor
- Status indicator LEDs
- Ideal for vehicle barrier automation.
- 12-24 VAC/VDC power supply
- Maximum consumption of 2.5W
- Dimensions 76 x 38 x 76 mm
- Presence detection time from 1 to infinite.
- IP40 protection rating
- Operating temperature -30 to 70°C.

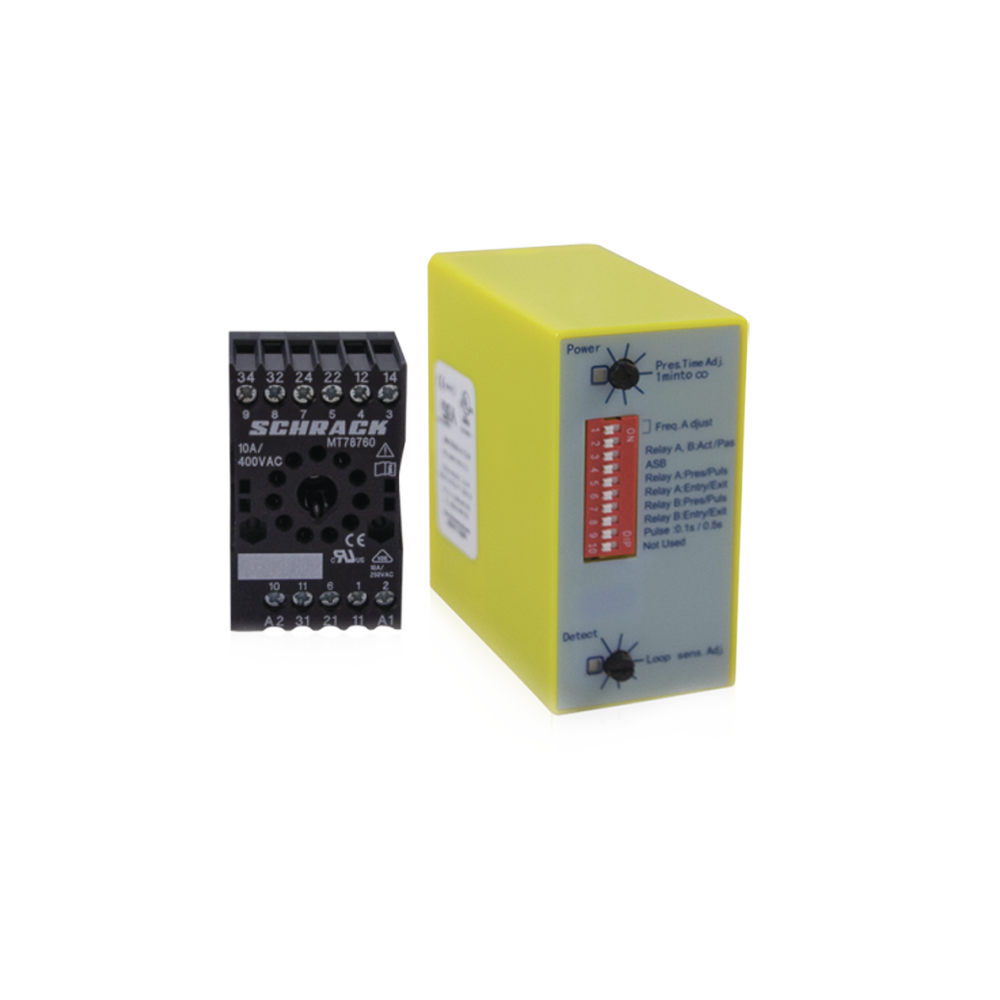

Single Channel Mass Sensor
WHEN USING AS CLOSING PULSE ALSO USE PHOTOCELLS FOR PROTECTION
Features:
- Inductive circuit technology
- Presence type detection mode
- NO/NC relay output
- Green signaling LED for power status
- Red signaling LED for detection status
- Check the connection diagram HERE
Compatible with magnetic loops (Not included):
- SYSLM4 4-meter magnetic loop
- SYSLM6 6-meter magnetic loop
- SYSLM8 8-meter magnetic loop
Barrier Compatibility
- CAME barrier series GARD and G3750
- XB AccessPRO barrier series
The Matrix mass sensor is the ideal solution for parking control with barriers, sliding gates, vehicle access control and industrial control systems.
Matrix is a high-performance, single-channel vehicle detector housed in a compact casing.
Ideal for exit automation in sliding gates and vehicle barrier closing.
