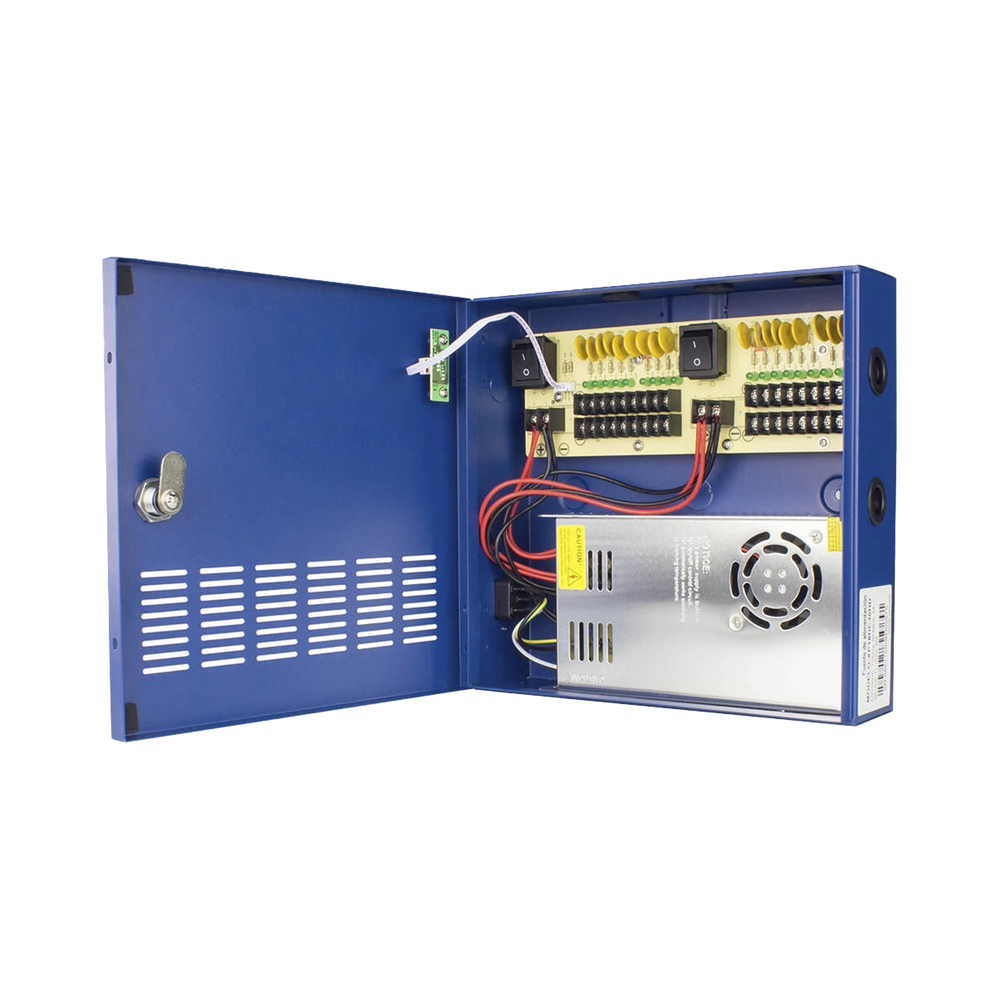

Professional HEAVY DUTY Power Supply @ 30 Amps / 18 channels / Up to 2.5 Amps by channel Output / Overload Protection / Noise Filter per Channel / UL Certified

Descripción

P18DC20HD is the only POWER SUPPLY in the industry with variable output voltage up to 15VDC ensures voltage sending in long distances.

 Power output filtered to prevent noise and protected against overvoltage.

HEAVY-DUTY.

• Easy installation
• Short circuit and over-voltage protection.
• Conventionally cooling system air.
• External LED indicators for each channel output.
• Built against electromagnetic interference filter EMI.

Protection:
• Overcurrent protection: 105 ~ 150% (rated output voltage)
• Overvoltage Protection: 1.5 times of the rated voltage
• Short circuit protection: short the output voltage, with automatic reset.

Physical and Electrical Specifications:

• Approved by: IEC / EN / CSA, 60950 GB4943
• Input voltage: 100 o 240 Vac
• Output voltage: 11.5 ~ 15 VDC. (adjustable)
 • Output Current: 30 A

• Output Current by channel : 2.5 A
  • Board distribution: 1 for connection of 18 cameras.
  • Dimensions: 10.43 x 10.03 x 3.14″
  • Operating temperature: -14 ~ 122 °F
  • Weight: 5.5 lb
• UL Certified

  *1 Year Warranty
