Descripción

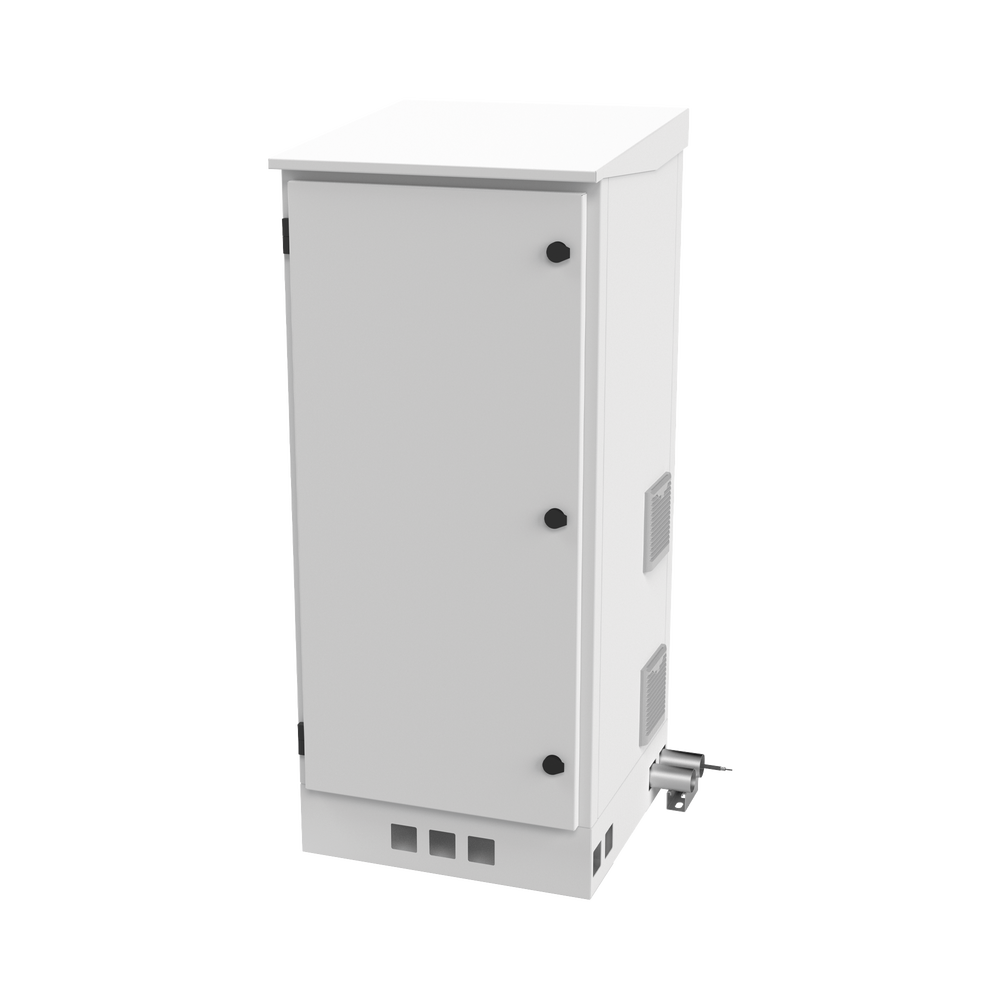

Outdoor Floor Cabinet with Fans and Thermostat, 19″ Rack with 16 Units + Space for Installation of 2 Backup Batteries at the Bottom
Main Features:
- Outdoor cabinet with fans
- Standard 19″ rack with 16 units + space for battery installation
- Also includes two 24U mounting rails in case the battery space is not used
- Fans are controlled by an adjustable thermostat
- Includes base and anchors for mounting on a concrete floor
- Comes with 4 internal terminals for connecting equipment to 110 VAC
- Internal mounting plate (at the back) for equipment installation
- Double security lock with key
- Includes dust filters and internal thermal insulation
Physical Characteristics:
- Cabinet body dimensions: 23.62″ (W) x 56.26″ (H) x 23.50″ (D) / 600 x 1429 x 597 mm (width x height x depth)
- Weight: 185.19 lbs / 84 kg
- Protection rating: IP-54
- Maximum distance between front and rear rack: 14.65″ / 372 mm
- Distance from front rack to door: 2.20″ / 56 mm
- Distance from front rack edge to back panel: 19.02″ / 483 mm
Electrical Characteristics:
- Includes two fans with 0.26A consumption, 110/120VAC
- Thermostat with adjustable range from 0 to 60°C
- Rack-mounted power strip with 4 outlets
- 15A circuit breaker
- 1.6-meter power cable, 18 AWG
