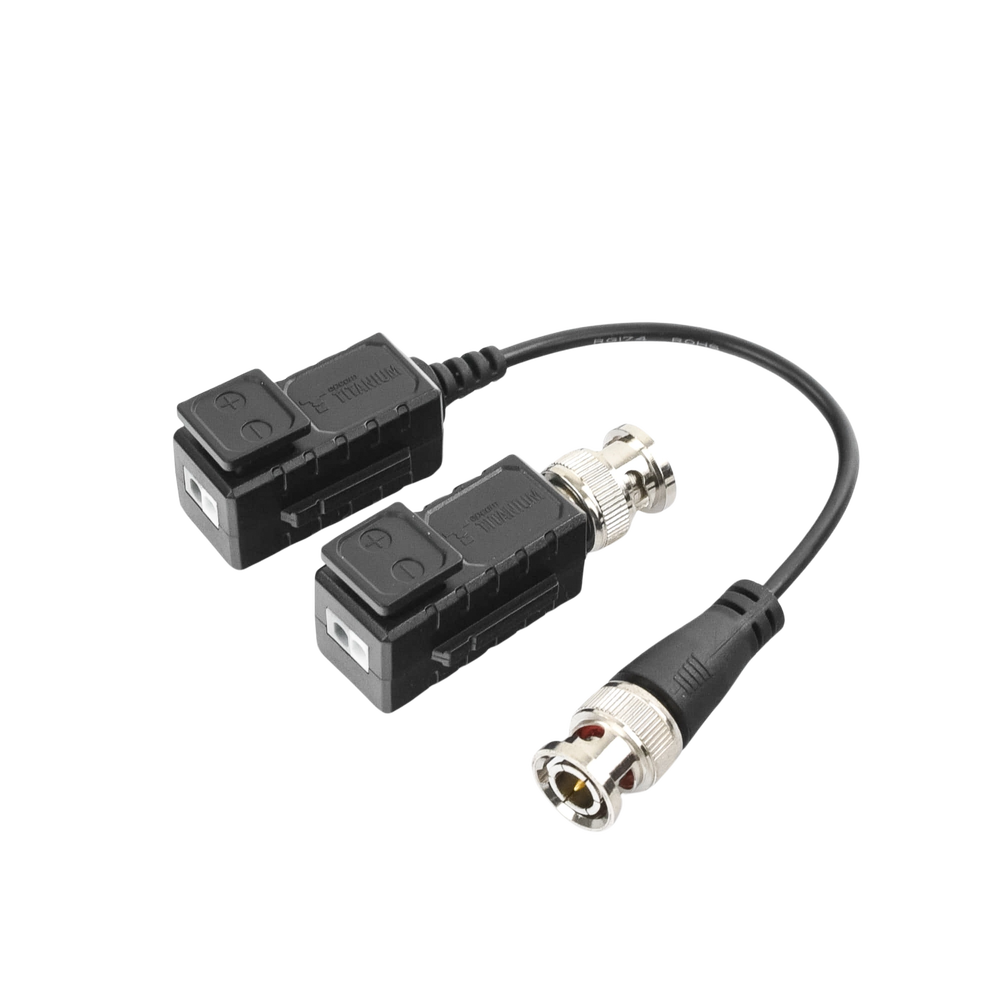

TT101FTURBO
Passive Video Transceiver Kit (Balun)
The TT-101-FTURBO video balun is a passive device that allows real-time transmission of HD CCTV video signals through twisted pair cable. It features copper connectors that offer greater conductivity, better performance at high frequencies (HD Video and long distances) and much lower attenuation. Some of the main advantages of this equipment include built-in solid-state TVS (transient voltage suppressor) for surge protection, anti-static design, Grade 3 lightning protection, 60 dB noise and crosstalk immunity, and exceptional interference rejection. It is compatible with all HD-TVI/CVI/AHD/CVBS analog cameras and widely used in CCTV cameras, monitors, DVRs, switchers, IP encoders and other CCTV equipment. Its PUSH-PIN terminals facilitate the connection of UTP cable pairs. One of the transceivers includes a pigtail for easy connection to the DVR. Definitely a premium product – the competition doesn’t offer this much in their products.
Main Features:
- Passive transceiver kit with PUSH-PIN type terminals. One of the transceivers includes a pigtail
- Compatible with cameras featuring HD-TVI / HD-CVI / AHD / CVBS technology
- Compatible with analog cameras (CVBS)
- Supports Coaxitron, Audio over coaxitron and OSD menu
- Real-time transmission over UTP Cat 5e/6/6A/7 cable
- Compatible video formats NTSC, PAL, SECAM
- 75 ohms impedance
- Male BNC connectors
Physical and Electrical Characteristics:
- No power required
- Dimensions 35.1(L) x 16.7(W) x 18.7(H) mm (BNC connector excluded)
- Weight: 40 grams
- Operating temperature: -20°C to 70°C
- Storage temperature: -40° ~ 150°C
- Relative humidity: 0~95% (non-condensing)
- ABS housing
- Color: Black
- 1 year warranty against manufacturing defects
Outstanding Features:
- Anti-static wave filter design
- 60 dB noise and crosstalk immunity
- Exceptional interference rejection
- Built-in surge protection
- Built-in solid-state TVS (transient voltage suppressor)
- 150 meter (492 ft) transmission for 4K TurboHD
- 200 meter (656 ft) transmission for TurboHD up to 5 MP
- 250 meter (820 ft) transmission for TurboHD up to 2 MP
-
Price per Kit
