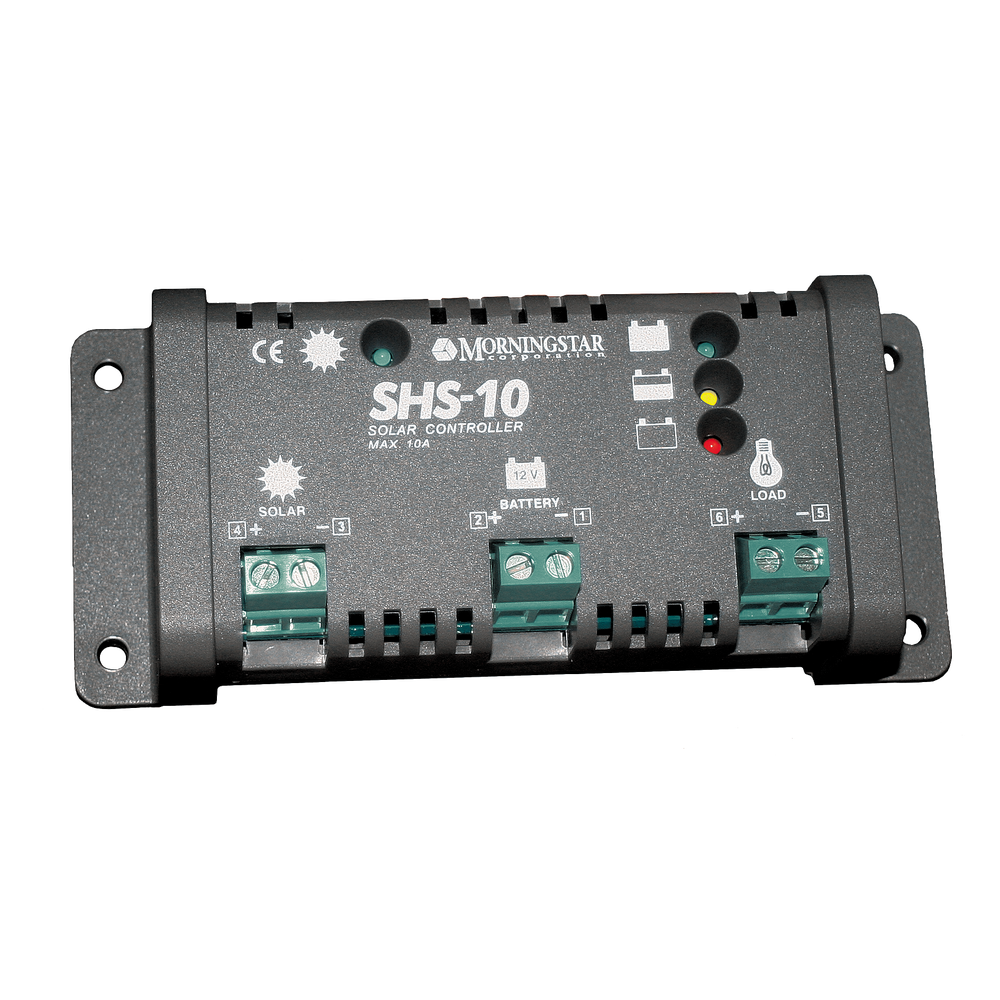

Charge and Discharge Solar Controller

Descripción

Ideal for electrification systems in rural areas from one up to three solar panels. Reduces the cost of battery replacements since it disconnects the charge when it detects low voltage; this increases its useful life and storage capacity.

Includes indicators of: charge level, low voltage, and disconnection.

Circuit board with conformal coated terminals (corrosion protected).

Technical Information:

• Regulation point: 14.3 Vcc.
• Low voltage disconnect: 11.5 Vcc.
• Low voltage reconnect: 12.6 Vcc.
• Capacity: 10 A.
• Self-consumption: 8 mA maximum.
• Temperature compensated charging.
• Electronic Protections:
         1. Short circuit and overcurrent—solar and load
         2. Reverse polarity—solar, load, battery
         3. Reverse current at night
         4. Limits high voltage to protect loads
         5. Lightning protection.
