Descripción
Features
– Access control
Capacity
– Cards: 30,000
– Passwords: 30,000
– Events: 100,000
(Event memory expandable with SD Memory up to 32GB)
Communication
– TCP / IP and RS485
– Input: multi-format Wiegand
Hardware

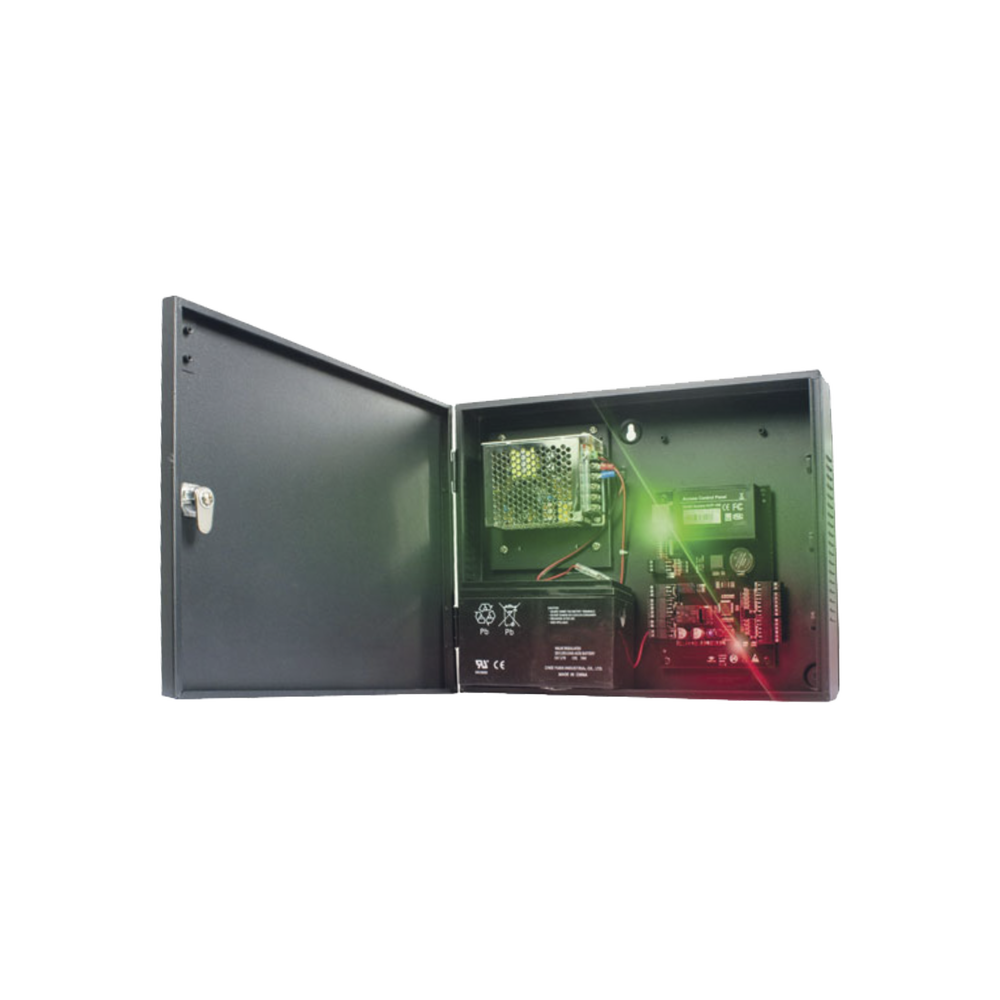

– Metal cabinet
– Includes 12VDC / 3A power (Battery not included).
Access Control Functions
– Access control by schedules and doors
– Combinables verification methods:
• Card + Password (with reader model SYSKR602EKB)
– Multi-user verification
– Interlock
– Anti-passback
– Energized relay function
Connections
– 4 relay output NC / NO / COM for board
– 4 Auxiliary relay output NC / NO / COM
– 4 Auxiliary output
– Exit button and magnetic sensor
Power
– 12VDC / 100mA
– Includes 12VDC / 3A power
Compatible Readers
– Proximity:
• SYSKR600E and SYSKR601E
• Supports 2 readers per door
– Proximity with the keyboard:
• SYSKR602EKB
• Supports 2 readers per door
– Long Range Readers:
• PRO6RF and PRO12RF
• Supports 2 readers per door
Additional Information
– Operating Temperature: 0-55 ° C
– Dimensions: 380 x 290 x 80 mm
– Includes Management Software (in Spanish)
*1 Year Warranty
Configurations
