TT-BNC-ISO

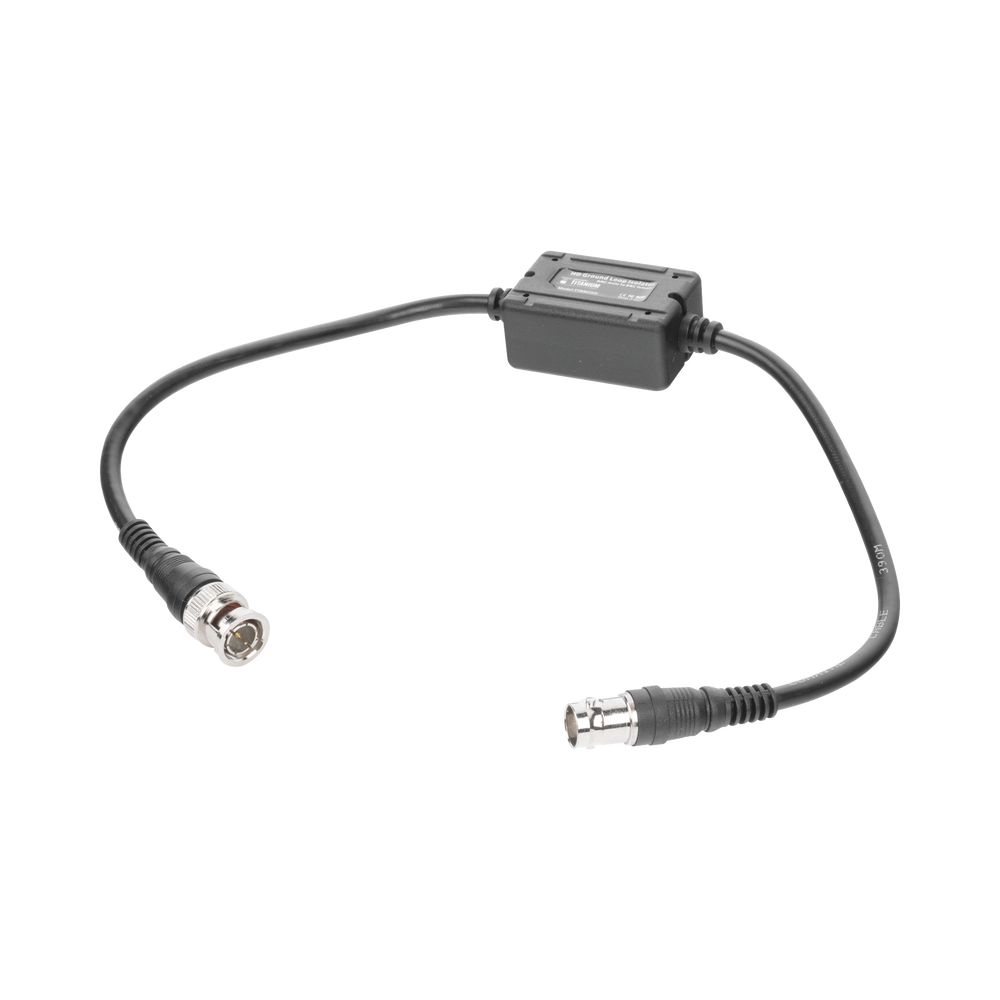

BNC ground isolator in HD. Eliminates video problems such as noise, crosstalk, distortion, and interference caused by ground loops.
TTBNC-ISO is a high-performance protector for use in coaxial or UTP cabling, it is a highly reliable HD video ground loop isolator to solve the problem of signal interference caused by interference potential. It features two female and male BNC connectors with surge protection. In real use, the isolator is connected directly to the high definition camera and DVR. Once the signal passes through the isolator, it will become a clear video image, without any ghosting. It is widely used in various security monitoring systems. No power required, installation is simple.
Main Features:
- To prevent video signal distortion caused by video ground loop
- Eliminates broken images, crosstalk and shifting.
- Male BNC to female BNC with 20 cm mini flexible RG 59 coaxial cable on both sides
- Can be connected to a coaxial cable or UTP Cat5e / 6
Physical and Electrical Characteristics:
- Loop circuit isolation: > 90 dB > 50 Hz
- Insertion loss: ≤0.5 dB
- Dimensions: 50 * 28 * 28 mm (L * W * H BNC connector included).
Highlighted Features:
- Compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras Up to 2 MP
- Prevents power cables established by other equipment from interfering with the closed circuit television system
- Can only be installed directly on the DVR side
